What Outdoor VCB Maintenance Should Record on Site

Outdoor vacuum circuit breaker maintenance is a documented mix of visual inspection, operating checks, mechanism and insulation condition records, and environment-triggered reviews; intervals and pass criteria come from the project maintenance plan and the manufacturer manual for the installed model. Use this page to structure outdoor VCB inspection records without inventing calendar intervals.

Part 1. What is included in outdoor VCB maintenance?

Typical packages cover enclosure condition, operating counters, mechanism lubrication state where specified, secondary wiring integrity, and insulation checks defined by the manual.

Readers searching for outdoor vacuum circuit breaker maintenance usually need a project checklist, not a catalog slogan.

Part 2. Which outdoor inspection points need a record?

Record corrosion, gasket condition, nameplate readability, animal or dust intrusion, and any leaning or mounting movement on the structure.

Part 3. Can a visual inspection replace a functional test?

No. Visual checks find enclosure issues; functional tests confirm open/close behavior and indications under the approved procedure.

Important: Do not copy outdoor vacuum circuit breaker maintenance intervals from another utility or from a blog table. Use the installed model manual and the site maintenance plan. (Source: IEC 62271 circuit-breaker practice / manufacturer manuals.)

Part 4. How often should an outdoor VCB be maintained?

Frequency is not set by this article. Use the project maintenance plan, manufacturer guidance for the model, and local operating stress.

Part 5. What should trigger an earlier maintenance review?

Flooding, severe pollution, abnormal operation counts, failed indications, or unexplained trips should trigger an earlier review.

Part 6. What data should a maintenance RFQ include?

Send model data, environment notes, counter readings, and required documents when asking suppliers about spare kits or service support.

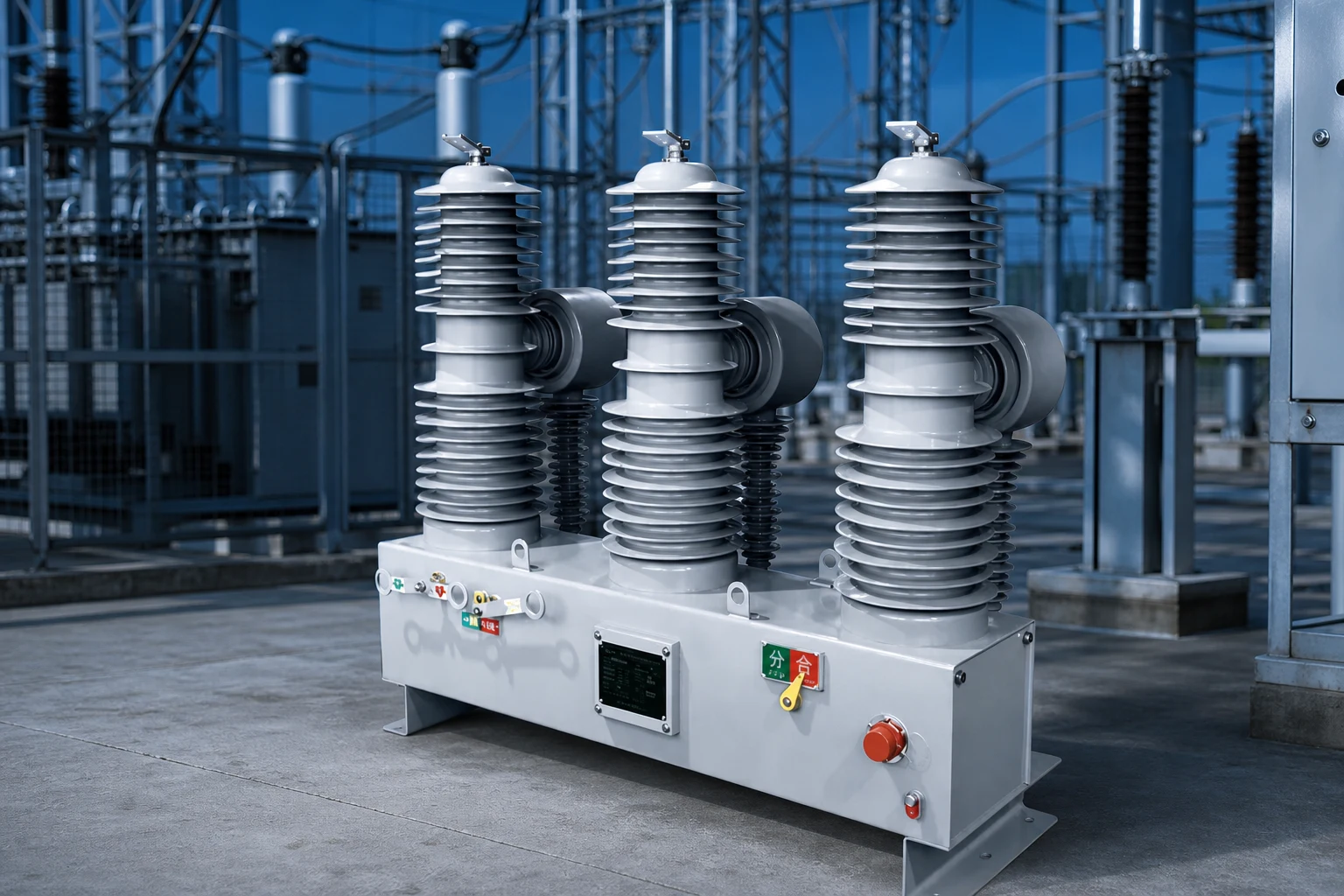

• ZW32-40.5 Outdoor Pole Mounted VCB — outdoor VCB route when maintenance data is defined.

Related articles:
– outdoor VCB applications selection guide
– pole-mounted recloser checklist
– solid-sealed poles article

Share counter and environment notes via the JUBANG medium-voltage pole-mounted circuit breaker range route, or contact JUBANG for service-document expectations.

Why not: Do not reuse indoor switchgear maintenance intervals for outdoor pole-mounted VCBs without the site plan.

Part 7. What are the fit boundaries?

This page helps buyers structure outdoor VCB maintenance questions. It does not prescribe intervals or declare a breaker healthy.

FAQ

Which tasks usually sit in an outdoor VCB maintenance package?

Inspection, functional checks, mechanism and insulation records, and environment-triggered reviews defined by the site plan.

Which outdoor checkpoints deserve a written record?

Enclosure, mounting, counters, indications, and secondary wiring condition.

Why is a visual check not enough by itself?

No. Visual work does not prove correct open/close behavior.

Who sets outdoor VCB maintenance frequency?

Follow the project plan and manufacturer guidance for the installed model; this page sets no interval.

Which events should bring maintenance forward?

Flooding, pollution events, abnormal counts, failed indications, or unexplained operations.

Which attachments belong in a maintenance RFQ?

Model identity, environment, counters/events, spare expectations, and documents.

Can this page declare a breaker healthy?

No. Condition assessment belongs to competent site procedures and verified data.
