What buyers should check for fusion breaker sensors

Primary-secondary fusion breaker sensors combine sensing with the switching device package; buyers should lock measurement roles, mounting interfaces, data links, and verification methods before treating catalog accuracy figures as site performance. Use this page to keep sensing claims tied to mounting, wiring, and verification evidence.

Part 1. Data fusion breaker sensors can provide

Sensors may provide current, voltage, or status inputs depending on the package. List the measurements the project actually needs.

Readers searching for primary secondary fusion breaker sensors usually need a project checklist, not a catalog slogan.

Part 2. Why a catalog accuracy figure is not enough

Accuracy statements assume defined conditions. Mounting, cable length, and temperature notes must be attached before comparison.

Part 3. Where a breaker sensor should be installed

Installation location belongs on the outline drawing. Field improvisation breaks the sensing chain assumptions.

Important: Do not accept fusion breaker sensor claims without mounting and verification context. Catalog accuracy alone is incomplete. (Source: IEC / IEEE sensing practice / project drawings.)

Part 4. What is needed to connect sensor data to a platform

Define protocol or hardwired paths, power for electronics, and spare cores. Silent interfaces delay commissioning.

Part 5. How a sensing chain is verified after installation

Verification needs a procedure that checks wiring, polarity, and indicated values against a known reference method.

Part 6. Fields that belong in a sensor RFQ

Ask for measurement list, mounting, interface documents, and verification scope when discussing JUBANG fusion-capable routes.

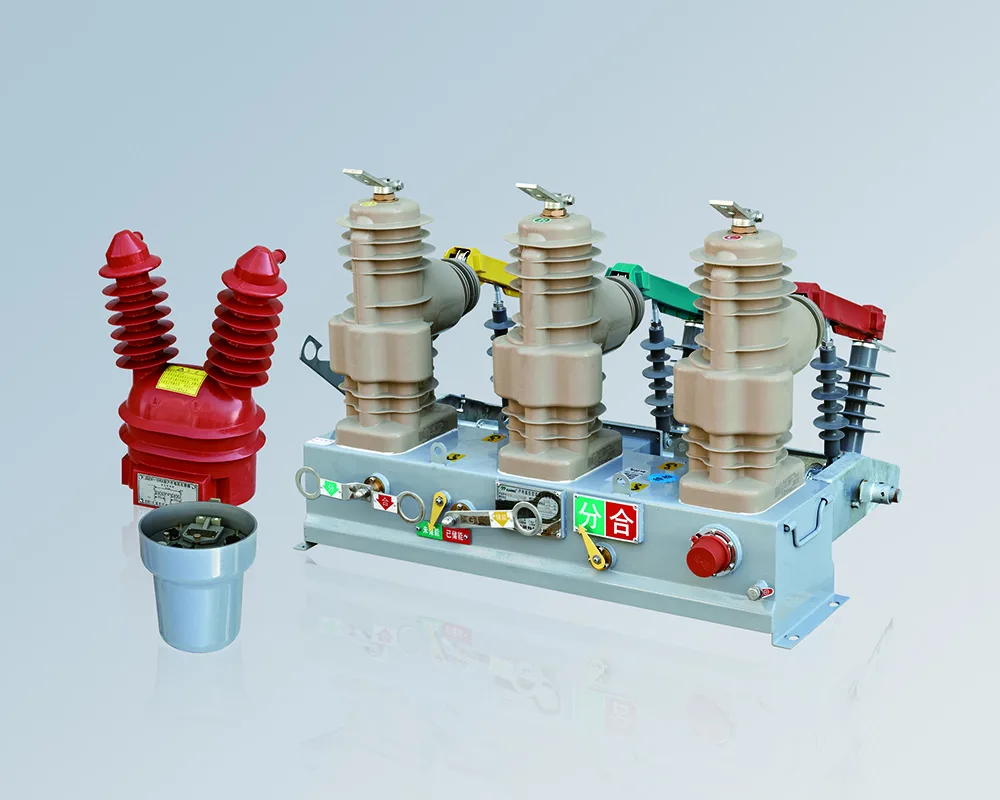

• ZW32-40.5 Outdoor Pole Mounted VCB — fusion-capable outdoor switching discussion after sensor roles are documented.

Related articles:
– primary-secondary fusion breaker checks
– pole-mounted VCB installation
– recloser communication protocols

Confirm mounting and interface notes against the JUBANG medium-voltage pole-mounted circuit breaker range, or contact JUBANG before sensor acceptance tests.

Why not: Do not treat a sensor accuracy line as proven for every mounting and cable arrangement.

Part 7. Fit boundaries for this sensor guide

This page supports RFQ clarity. It does not certify accuracy or approve a protection scheme.

FAQ

Which data can primary-secondary fusion breaker sensors provide?

They can provide the measurements and status points listed for the package – confirm the list against project needs.

Does a sensor accuracy figure apply to every installation?

No. Accuracy depends on stated conditions, mounting, and wiring.

Where should a breaker sensor be installed?

Where the approved outline and project standard place it.

What is needed to connect sensor data to a platform?

A documented interface path, power for electronics where required, and acceptance tests.

How is a sensing chain verified after installation?

Follow a procedure that checks wiring, polarity, and indicated values against a reference method.

Which items belong in a sensor RFQ?

Measurement list, mounting, interfaces, documents, and destination.

Does this page certify sensor performance?

No. Performance claims require verified product data and site procedures.
