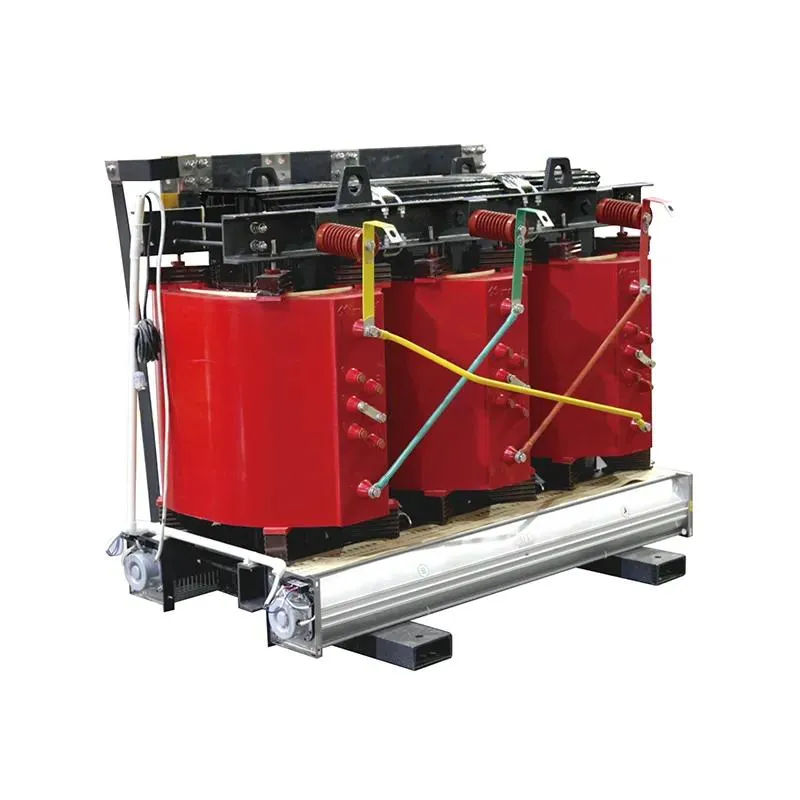

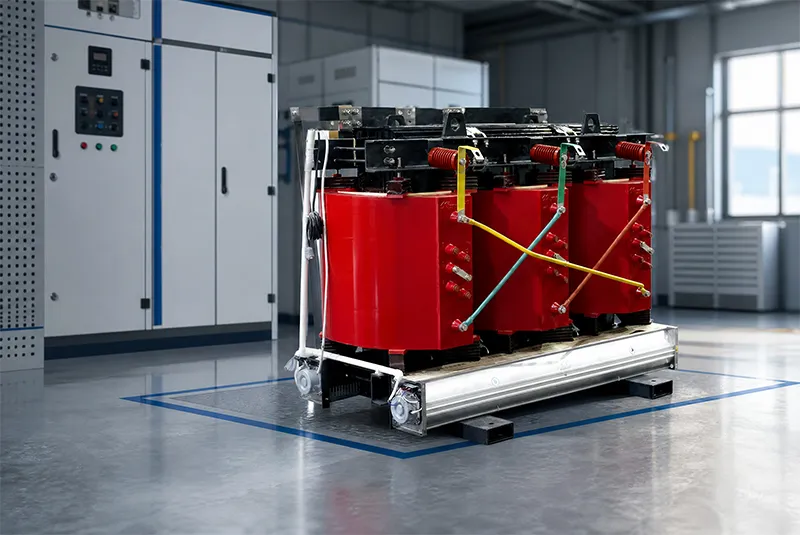

The SCB10 transformer (10kV) is an advanced electrical transformer that increases or decreases voltages electrically. Instead of being filled with oil, like most transformers, it uses a dry insulation system that encapsulated the windings with epoxy resin. This makes the SCB10 transformer safe and reliable while protecting the environment. The SCB10 transformer operates at a voltage of 10kV and is known for its thermal stability, fire retardancy, and low maintenance requirements, making it a common electrical transformer in today’s industry, commerce, and renewable energy.

The 10kV transformer SCP-10 parameterizes its place in international electrical industry innovations, providing safe and environmentally friendly options in various installations. To fully comprehend how utility type equipment functions, we will look at the various principles, applications, advantages/disadvantages, and commonly asked questions associated with the device.

Working Principle of the SCB10 10kV Epoxy Resin Dry Type Transformer

Transformers use the electromagnetic induction principle to function. The transformer produces an alternating current (A.C.) in the primary winding that creates a magnetic field, and the magnetic field produces voltage in the secondary winding. This basic principle will allow the transformer to convert high voltage to low voltage or vice versa, depending on the requirements of the application. The use of epoxy resin as an encapsulating material helps provide insulation, dissipate heat and protect from moisture and pollutants, and assist in achieving optimum operating efficiency under extreme environmental conditions.

Applications of SCB10 10kV Epoxy Resin Dry Type Transformer

Owing to its strong construction and advanced technologies, the SCB10 10kV epoxy resin dry type transformers are an ideal match for several applications.

1) Industrial Applications: Manufacturing plants have high-power equipment that needs reliable sources of electricity; hence SCB10’s reliability and safety are popular for many industrial locations, including those that use SCB10 in a facility with a critical application.

2. Renewable Energy Infrastructure (The “Transformers”): The transformer has been integrated into the infrastructure of renewable energy resources, such as wind generation and solar power facilities. The transformer not only assists in providing renewable energy generation and distribution but also ensures adherence with the environment protection standards.

3. Commercial Real Estate: The SCB10 is designed to provide a steady source of energy for the equipment that is found in today’s commercial buildings such as hospitals, shopping malls, and large office building complexes while being able to minimize the hazard of injury to people and /or equipment.

Transports and infrastructure are essential to railways, airports, and many other types of infrastructure projects, all of which rely on SCB10 transformers to supply power safely and efficiently.

5. Industrial Operations & Heavy Machinery: When working in a tough environment, like rough terrain. An SCB10 (dry type epoxy resin) transformer can withstand harsh operating conditions because of its rugged structure.

Advantages of SCB10 10kV Epoxy Resin Dry Type Transformer

The SCB10 series 10kV dry-type epoxy resin transformer provides a variety of features and advantages that increase its usability and dependability.

The SCB10’s dry insulator allows for no risk of leaking or catching on fire, so it is excellent for use in the urban setting and anywhere safety is a concern. An infrastructure based on oil will be able to use this technology.

The environmentally exemplary: A dry type design will be in line with environmentally conscious standards because they contain no oil (which would be potentially contaminating through spilling).

3. Zero Maintenance Costs: An exceptional feature of SCB10 transformer is its epoxy resin insulation, which provides low maintenance costs throughout the product life.

The SCB10 transformer’s strong construction, moisture resistance and greater thermal stability (even in extreme conditions) all contribute to a longer useful life.

5 – Compact Structure: Because of its compact size in relation to conventional transformers, units can be put into tight locations easily.

Disadvantages of SCB10 10kV Epoxy Resin Dry Type Transformer

Though the SCB10 transformer offers several benefits, it also has a few drawbacks to consider:

High Initial Expense: Because of the newer technology and materials used in constructing these transformers, they may be significantly more expensive to build than oil-filled transformers. However, the high initial price of an oil-less transformer can be reduced over the life of the transformer due to lower operating and maintenance expenses.

Low Capacity Rating: Unlike Oil Cooled, the SCB10 and other dry-type transformers have significantly lower capacity than their oil-filled equivalent, thereby limiting their use in high-demand applications.

Cooling Performance: A dry-type transformer relies on the surrounding air for cooling, therefore, its performance can be affected by the external environment. Oil-filled transformers use dedicated cooling systems and therefore are not impacted by the outside environment.

FAQ

What is the working principle of the SCB10 10kV epoxy resin dry type transformer?

Electrical energy is transferred between two (2) electrical circuits using an electromagnetic induction principle. The magnetic field used to transfer electrical energy from one (1) electrical circuit to another (2) is produced when a current is passed through an AC electrical circuit. Epoxy Resin (as an insulator) provides additional mechanical support and physical protection against moisture/filtration and provides thermal/deviation properties.

What are the key applications of the SCB10 10kV epoxy resin dry type transformer?

Important uses include creating products in factories, building renewable energy resources, developing commercial buildings and transportation hubs, and producing large amounts of goods in industries like mining.

What advantages and disadvantages should be considered when selecting the SCB10 10kV transformer?

Pros include safe usage, being environmentally friendly, needing minimal maintenance, long lasting durability, and compact/hard to fit in building’s layout. There is a higher upfront cost than a conventional steel or aluminum transformer and can only provide limited cooling when outdoor temperatures are extreme (over 90°F).

SCB10 10kV epoxy resin dry-type transformers are state-of-the-art, energy efficient transformers that can satisfy the requirements of industrial, commercial, and renewable energy applications. SCB10 transformers have been built with a focus on safety, reliability, and compliance with environmental regulations so users can expect consistent performance in all environments. Although there is an additional upfront cost for SCB10 transformers, their benefits over the long term (i.e. decreased maintenance costs, improved reliability) make them worthwhile investments for businesses looking to safely and effectively improve their electrical infrastructure’s performance.
