• Intelligent and high breaking;

• Equipped with 3 and 4 poles, drawer type and fixed type, and can be installed with reverse wire;

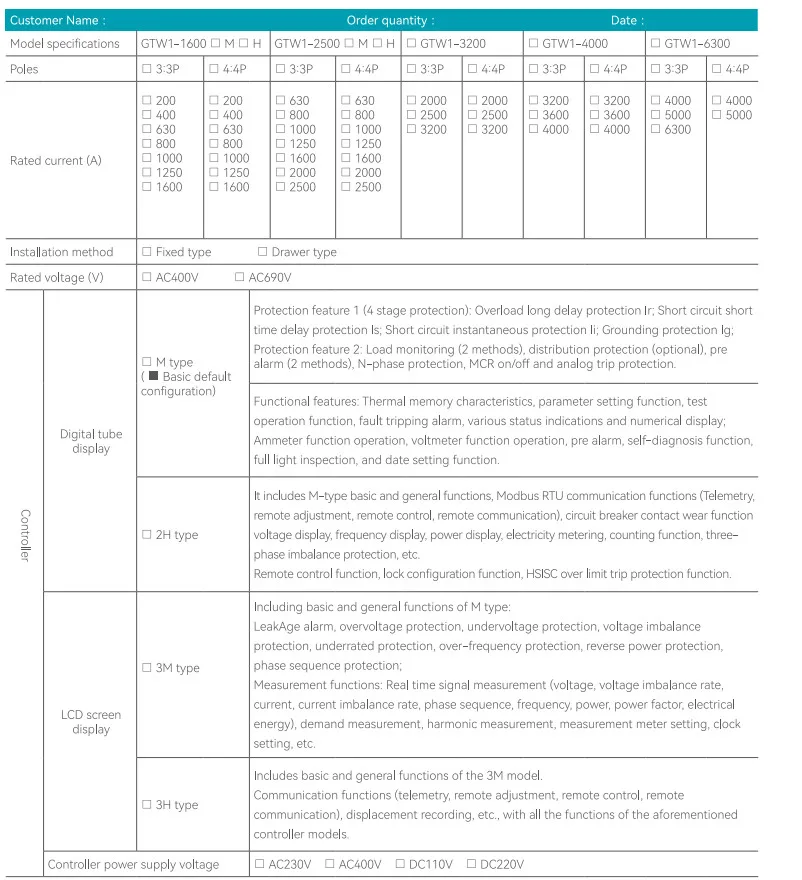

• Equipped with multiple intelligent controllers, providing three-stage/four stage protection functions, monitoring functions, fault memory functions, and communication interfaces, it can achieve telemetry, remote adjustment, remote control, and remote communication;

• Complies with GB/T14048.2 and IEC60947-2 standards;

• Complete protection characteristics, convenient setting, high accuracy, with instantaneous, short delay, long delay grounding and other protection characteristics;

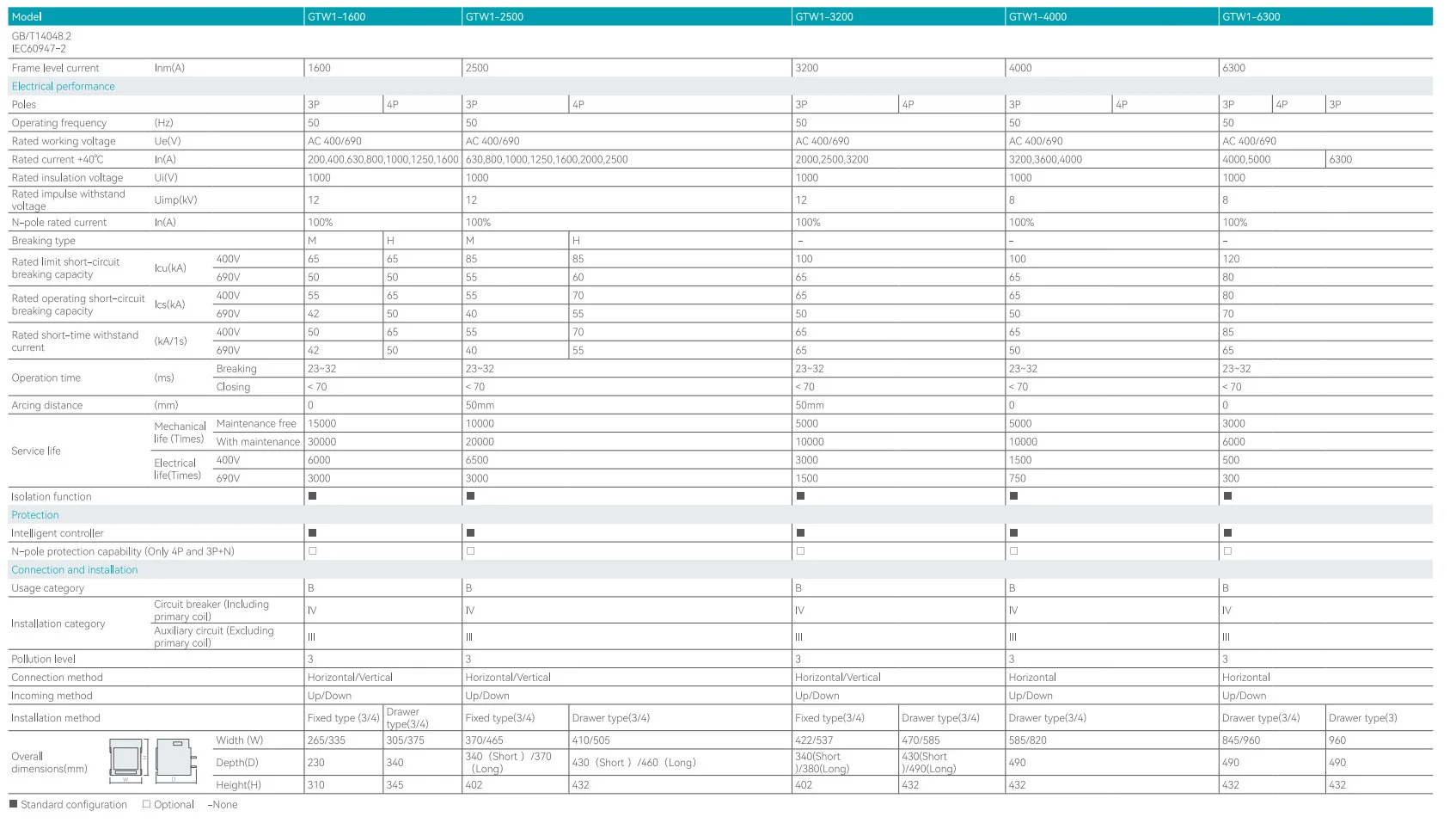

• The current ranges from 200A~6300A and the short-circuit breaking capacity is 50kA~120kA.
