Low Voltage Electrical

Product

GTM6 Series Molded case ciecuit breaker

• It has the characteristics of compact structure, small size, high breaking, and short arc distance;

• It has multiple wiring methods, including front-panel wiring, back-panel wiring, pull-out, plug-in, etc;

• Complies with GB/T14048.2 and IEC60947-2 standards;

• Complete accessories, fast installation, convenient use, and strong applicability;

• The current ranges from 16A to 800A and is divided into 3 and 4 poles according to the number of poles.

Overview

Selection instructions

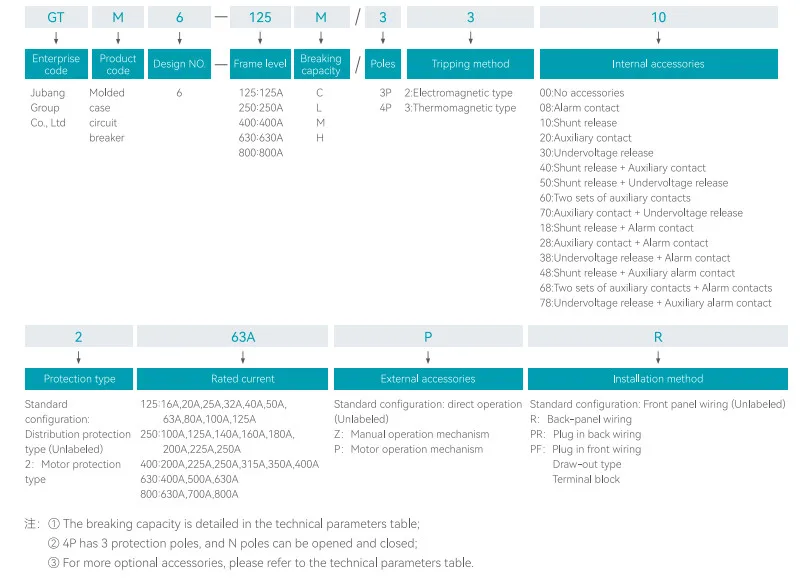

GTM6 Series Molded case ciecuit breaker (1)

Product features

• It has the characteristics of compact structure, small size, high breaking, and short arc distance;

• It has multiple wiring methods, including front-panel wiring, back-panel wiring, pull-out, plug-in, etc;

• Complies with GB/T14048.2 and IEC60947-2 standards;

• Complete accessories, fast installation, convenient use, and strong applicability;

• The current ranges from 16A to 800A and is divided into 3 and 4 poles according to the number of poles.

Model specifications

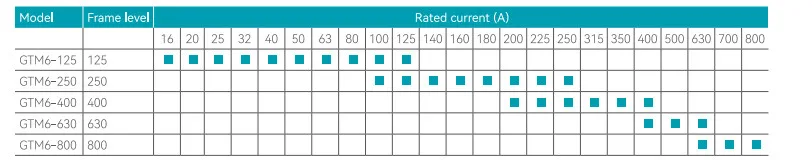

GTM6 Series Molded case ciecuit breaker (2)

Technical parameters

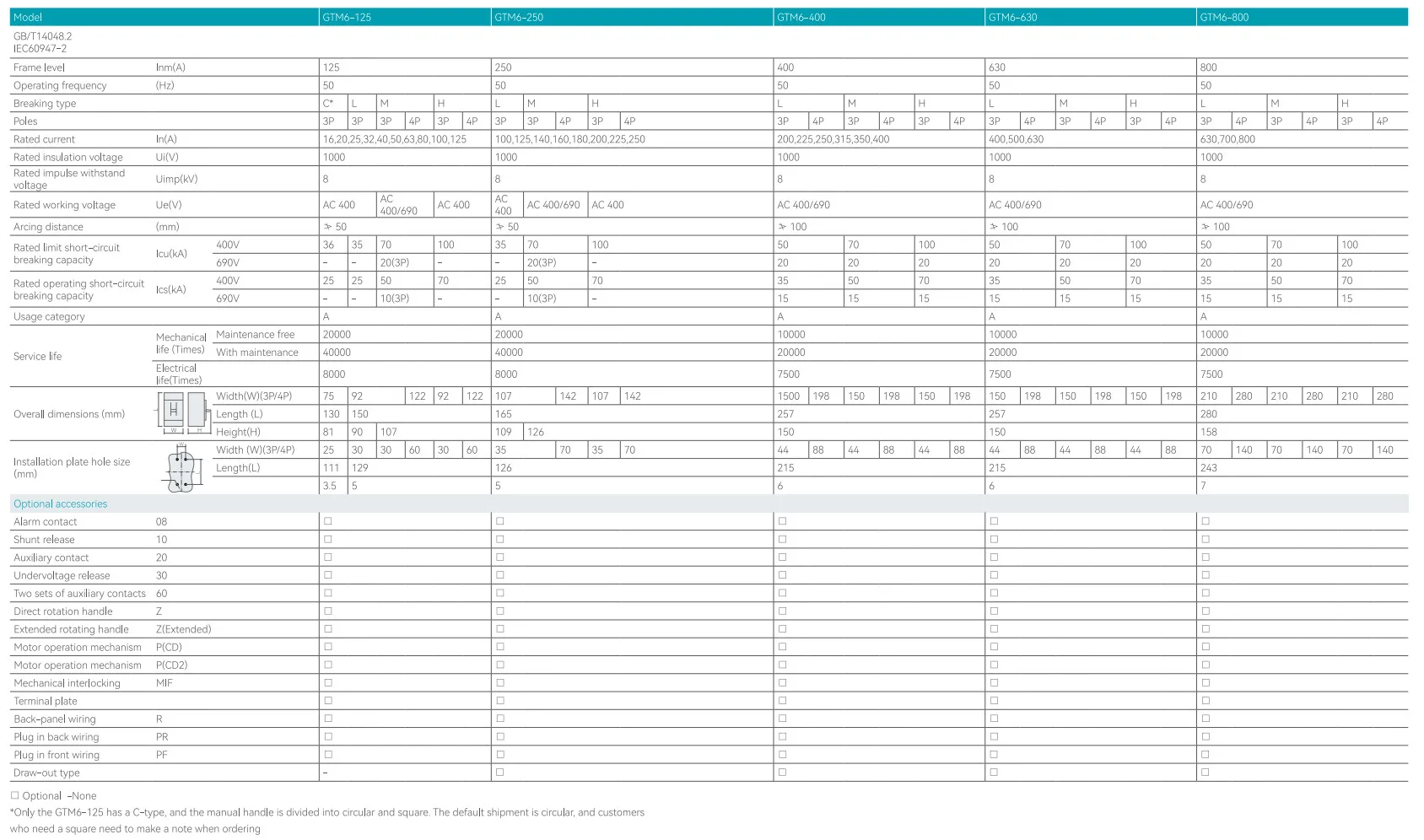

GTM6 Series Molded case ciecuit breaker (3)
