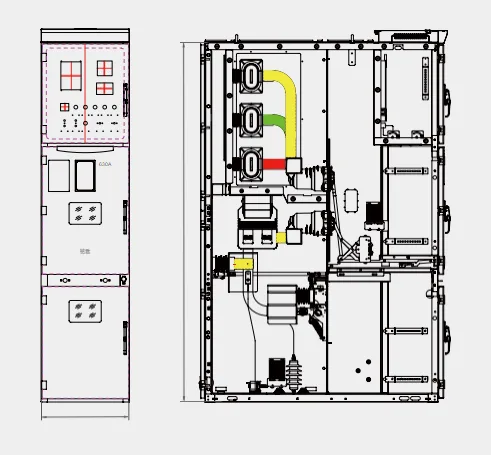

The switchgear is composed of two main parts: a cabinet body and a central withdrawable component (i.e. a handcart). The cabinet is divided into four separate compartments, with an enclosure protection level of IP4X. When the doors of each compartment and circuit breaker room are opened, the protection level is IP2X. Equipped with overhead incoming and outgoing lines, cable incoming and outgoing lines, and other functional schemes, it can be arranged and combined to form various forms of power distribution devices. This switchgear can be installed, debugged, and maintained from the front, so it can be double arranged back to back and installed against the wall, improving the safety and flexibility of the switchgear and reducing the floor area.

Normal service conditions

• Ambient air temperature: Upper limit+40C, lower limit -25C;

• Altitude: The maximum altitude of the equipment installation site is 1000m;

• Environment temperature: The daily average relative humidity shall not exceed 95%, and the monthly average relative humidity shall not exceed 90%;

• Earthquake intensity: not exceeding 8 degrees;

• The surrounding air should not be significantly polluted by corrosive or combustible gases, water vapor, etc.;

• There should be no severe pollution or frequent strong vibrations, and the severity design under harsh conditions should meet Class 1 requirements.
