• The anti-harmonic intelligent capacitor is an independent and complete intelligent compensation unit composed of an intelligent measurement and control unit, an intelligent zero crossing switching relay, an intelligent protection unit, a low-voltage self-healing power capacitor, and a dry series reactor;

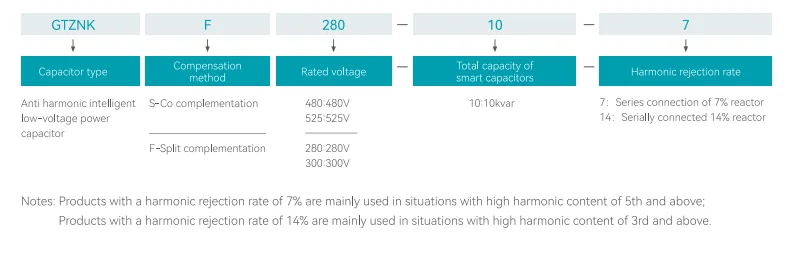

• The product is mainly used for reactive power compensation in situations where harmonics are very severe. It can operate reliably without generating resonance, has no amplification effect on harmonics, and has the function of absorbing and eliminating harmonics to a certain extent. The product with a 7% reactor in series is used in electrical environments where the main harmonics are 5th, and the product with a 14% reactor in series is used in electrical environments where the main harmonics are 3rd;

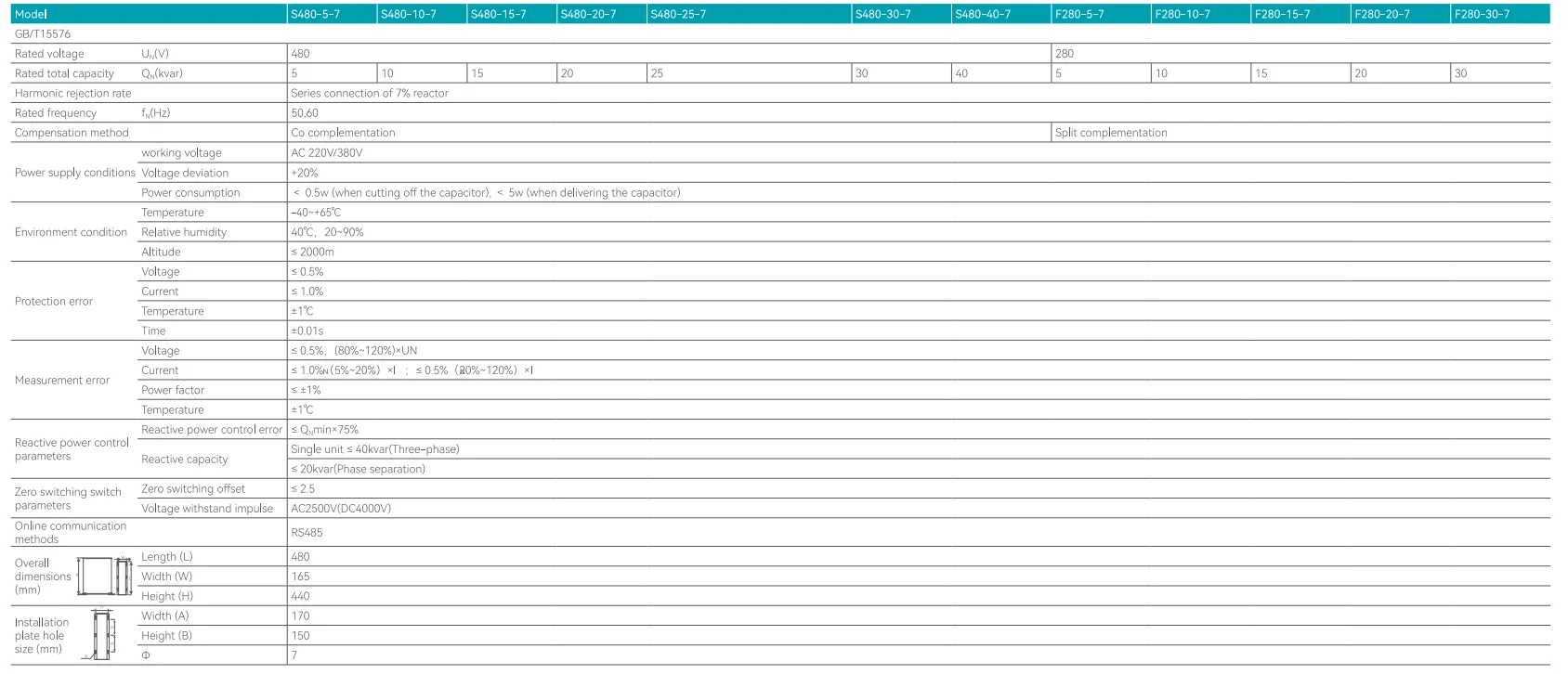

• The product has complete measurement and protection functions, with special protections such as internal temperature of capacitors, harmonic content of the power grid, phase failure, and three–phase imbalance;

• The product can be used in the form of multiple building blocks, combined to form a reactive power automatic control system, with a higher degree of intelligence.
