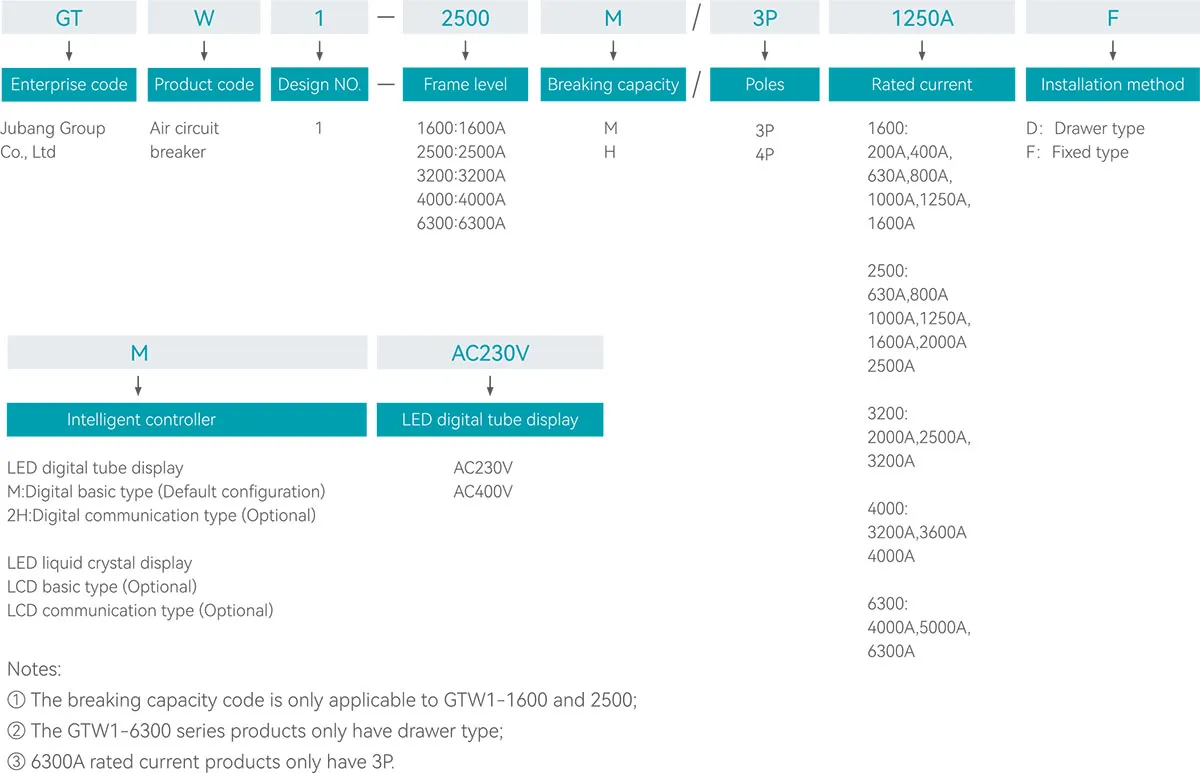

Selection instructions
Product Features
•Intelligent and high breaking;
• Equipped with 3 and 4 poles, drawer type and fixed type, and can be installed with reverse wire;
• Equipped with multiple intelligent controllers, providing three-stage/four stage protection functions, monitoring functions, fault memory functions, and communication interfaces, it can achieve telemetry, remote adjustment, remote control, and remote communication;
• Complies with GB/T14048.2 and IEC60947-2 standards;
• Complete protection characteristics, convenient setting, high accuracy, with instantaneous, short delay, long delay grounding and other protection characteristics;
• The current ranges from 200A~6300A and the short-circuit breaking capacity is 50kA~120kA.
Technical parameters
| Model |
GTW1-1600 |
GTW1-2500 |
GTW1-3200 |
GTW1-4000 |
GTW1-6300 |
GB/T14048.2
IEC60947-2 |
| Frame level current |
Inm(A) |
1600 |
2500 |
3200 |
4000 |
6300 |
| Electrical performance |
| Poles |
3P |
4P |
3P |
4P |
3P |
4P |
3P |
4P |
3P |
4P |
3P |
| Operating frequency |
(Hz) |
50 |
50 |
50 |
50 |
50 |
| Rated working voltage |
Ue(V) |
AC 400/690 |
AC 400/690 |
AC 400/690 |
AC 400/690 |
| Rated current +40℃ |
In(A) |
200,400,630,800,1000,1250,1600 |
630,800,1000,1250,1600,2000,2500 |
2000,2500,3200 |
3200,3600,4000 |
4000,5000 |
6300 |
| Rated insulation voltage |
Ui(V) |
1000 |
1000 |
1000 |
1000 |
1000 |
| Rated impulse withstand voltage |
Uimp(kV) |
12 |
12 |
12 |
8 |
8 |
| N-pole rated current |
In(A) |
100% |
100% |
100% |
100% |
100% |
| Breaking type |
M |
H |
M |
H |
– |
– |
– |
| Rated limit short-circuit breaking capacity |
Icu(kA) |
400V |
65 |
65 |
85 |
85 |
100 |
100 |
120 |
| 690V |
50 |
50 |
55 |
60 |
65 |
65 |
80 |
| Rated operating short-circuit breaking capacity |
Ics(kA) |
400V |
55 |
65 |
55 |
70 |
65 |
65 |
80 |
| 690V |
42 |
50 |
40 |
55 |
60 |
50 |
70 |
| Rated short-time withstand current |
(kA/1s) |
400V |
50 |
65 |
55 |
70 |
65 |
65 |
85 |
| 690V |
42 |
50 |
40 |
55 |
65 |
50 |
65 |
| Operating time |
(ms) |
Opening |
23~32 |
23~32 |
23~32 |
23~32 |
23~32 |
| Closing |
<70 |
<70 |
<70 |
<70 |
<70 |
| Arc distance |
(mm) |
0 |
50mm |
50mm |
0 |
0 |
| Service life |
Mechanical life(times) |
Maintenance-free |
15000 |
10000 |
5000 |
5000 |
3000 |
| With maintenance |
30000 |
20000 |
10000 |
10000 |
6000 |
| Electrical life(times) |
400V |
6000 |
6500 |
3000 |
1500 |
500 |
| 690V |
3000 |
3000 |
1500 |
750 |
300 |
| Isolation function |
■ |
■ |
■ |
■ |
■ |
| Protection |
| Intelligent Controller |
■ |
■ |
■ |
■ |
■ |
| N-pole Protection capability(only 4P and 3P+N) |
□ |
□ |
□ |
□ |
□ |
| Connection and Installation |
| Usage category |
B |
B |
B |
B |
B |
| Installation category |
Circuit breaker(including primary coil) |
Ⅳ |
Ⅳ |
Ⅳ |
Ⅳ |
Ⅳ |
| Auxiliary circuit(excluding primary coil) |
Ⅲ |
Ⅲ |
Ⅲ |
Ⅲ |
Ⅲ |
| Pollution level |
3 |
3 |
3 |
3 |
3 |
| Connection method |
Horizontal/Vertical |
Horizontal/Vertical |
Horizontal/Vertical |
Horizontal |
Horizontal |
| Incoming method |
Up/Down |
Up/Down |
Up/Down |
Up/Down |
Up/Down |
| Installation method |
Fixed type(3/4) |
Drawer type(3/4) |
Fixed type(3/4) |
Drawer type(3/4) |
Fixed type(3/4) |
Drawer type(3/4) |
Drawer type(3/4) |
Drawer type(3/4) |
Drawer type(3) |
| Overal dimensions(mm) |
 |
Width(W) |
265/335 |
305/375 |
370/465 |
410/505 |
422/537 |
470/585 |
585/820 |
845/960 |
960 |
| Depth(D) |
230 |
340 |
340(short)
370(long) |
430(short)
460(long) |
340(short)
380(long) |
430(short)
490(long) |
490 |
490 |
490 |
| Height(H) |
310 |
345 |
402 |
432 |
402 |
432 |
432 |
432 |
432 |
■Standard configuration □Optional – None
Ordering specifications
| Customer Name : |
Order quantity : |
Date : |
| Model specifications |
GTW1-1600 □M□H |
GTW1-2500 □M□H |
□ GTW1-3200 |
□ GTW1-4000 |
□ GTW1-6300 |
| Poles |
□3:3P |
□4:4P |
□3:3P |
□4:4P |
□3:3P |
□4:4P |
□3:3P |
□4:4P |
□3:3P |
□4:4P |
| Rated current (A) |
□200
□400
□630
□800
□1000
□1250
□1600 |
□200
□400
□630
□800
□1000
□1250
□1600 |
□630
□800
□1000
□1250
□1600
□2000
□2500 |
□630
□800
□1000
□1250
□1600
□2000
□2500 |
□2000
□2500
□3200 |
□2000
□2500
□3200 |
□3200
□3600
□4000 |
□3200
□3600
□4000 |
□4000
□5000
□6300 |
□4000
□5000 |
| Installation method |
□Fixed type □Drawer type |
| Rated voltage (V) |
□AC400V □AC690V |
| Controller |
Digital tube
display |
□M type
(■Basic default
configuration) |
Protection feature 1 (4 stage protection): Overload long delay protection Ir; Short circuit short time delay protection Is; Short circuit instantaneous protection li; Grounding protection lg; Protection feature 2: Load monitoring (2 methods), distribution protection(optional), prealarm (2 methods), N-phase protection, MCR on/off and analog trip protection. |
| Functional features: Thermal memory characteristics, parameter setting function, test operation function, fault tripping alarm, various status indications and numerical display; Ammeter function operation, voltmeter function operation, pre alarnn, self-diagnosis function, full light inspection,and date setting function. |
| □2H type |
It includes M-type basic and general functions, Modbus RTU cormmunication functions (Telemetry, remote adjustment, remote control, remote communication), circcuit breaker contact wear function voltage display, frequency display, power display, electricity metering, counting function, three-phase imbalance protection, etc.
Remote control function, lock configuration function, HSISC over limit trip protection function. |
LCD screen
display |
□3M type |
Including basic and general functions of M type:
LeakAge alarm, overvoltage protection, undervoltage protection, voltage imbalance protection, underrated protection, over-frequency protection, reversepower protection, phase sequence protection;
Measurement functions: Real time signal measurement (voltage, voltage imbalance rate, current, current imbalance rate, phase sequence, frequency, power, power factor, electrical energy), demand measurement, harmonic measurement, measurement meter setting, clock setting, etc |
| □3H type |
Includes basic and general functions of the 3M model.
Communication functions (telemetry, remote adjustment, remote control, remote communication), displacement recording, etc.,with all the functions of the aforementioned controller models. |
| Controller power supply voltage |
□AC230V □AC400V □DC110V □DC220V |
GTW1-2500 above
undervoltage release |
□Normal type |
□Instantaneous |
□AC230V □AC400V |
| □Self-priming type |
□Instantaneous |
□AC230V □AC400V |
| □Delayed |
□AC230V □AC400V |
□0.3S □0.5S □1S □3S □5SAdjustable
□Special customization delay_____s |
GTW1-1600 Undervoltage
release |
□AC230V □AC400V
□Instantaneous □Delayed(□0.5s □2s □3s Optional non adjustable)
□Special customization delay_____s |
| Shunt release |
□AC230V □DC2220V □AC400V □DC110V |
| Closed electromagnet |
□AC230V □DC2220V □AC400V □DC110V |
| Energy storage motor |
□AC230V □DC2220V □AC400V □DC110V |
Auxiliary
contact |
GTW1-2500
and above |
□4 group transfer (Normal) □Four open and four close □6 group transfer □6 open and 6 close
□Special please note |
| GTW1-1600 |
□4 group transfer (Normal) □2 open and 2 close |
Special requirements
standard configuration |
□Steel cable interlocking (Default 2 meters) special customization_____meters |
| □Lever interlocking □ L-shaped wiring |
| □1 lock 1 key □3 locks 1 key □3 locks 2keys □5 locks 2keys □Special project___locks___keys |
| □External N-phase transformer 【(3P+N)T-mode】 □External zero sequence sensor (E mode) |
| □External ground current sensor (W mode) |
| □Automatic power transfer system(Unit:_____set) See notes① |
Notes:
①A set of automatic power transfer system comes standard with two GTW1 universal circuit breakers, one automatic transfer controller one set of control cables, and one set of interlocking mechanism. Among them, the voltage of the universal circuit breaker controller power supply, shunt release, closing electromagnet, and energy storage motor should all be AC230V.
②When the user orders without any requirements, the controller is selected as M-type, and the default setting value at the factory is:
a)Set the long delay Ir to 1.0 In and the action time of 1.5 Ir to 15 seconds
b)Set the short delay Is to the value of 8lr and the timing limit to 0.4s
c) Instantaneous li set at 12In
d) Ground fault lg set at 0.4ln, action time 0.4s
