GTM1 Series Molded case circuit breaker

• It has the characteristics of compact structure, small size, high breaking, and short arc distance;

• It has multiple wiring methods, including front panel wiring, back panel wiring, draw–out, plug–in, etc;

• Complies with GB/T14048.2 and IEC60947–2 standards;

• Complete accessories, fast installation, convenient use, and strong applicability;

• The current ranges from 10A~800A and is divided into 2, 3, and 4 poles according to the number of poles.

Get A Quote

Overview

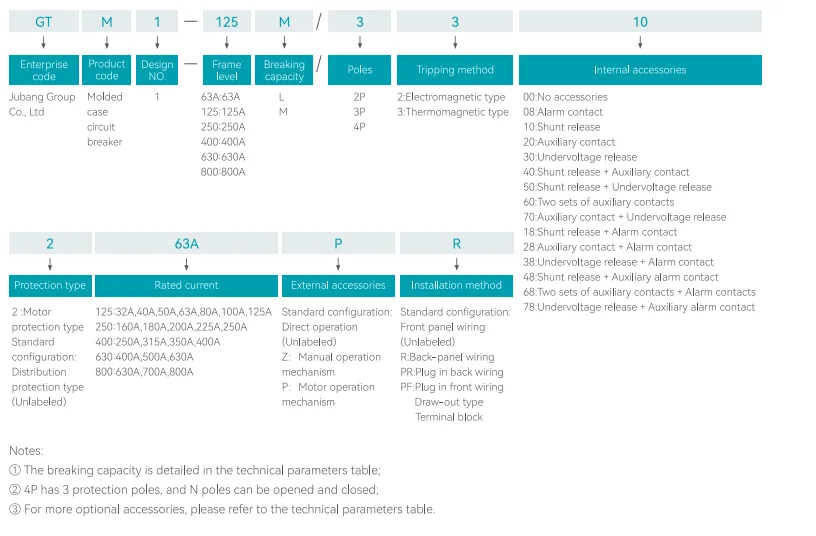

GTM1 Series Molded case circuit breaker (1)

• It has the characteristics of compact structure, small size, high breaking, and short arc distance;

• It has multiple wiring methods, including front panel wiring, back panel wiring, draw–out, plug–in, etc;

• Complies with GB/T14048.2 and IEC60947–2 standards;

• Complete accessories, fast installation, convenient use, and strong applicability;

• The current ranges from 10A~800A and is divided into 2, 3, and 4 poles according to the number of poles.

GTM1 Series Molded case circuit breaker (2)

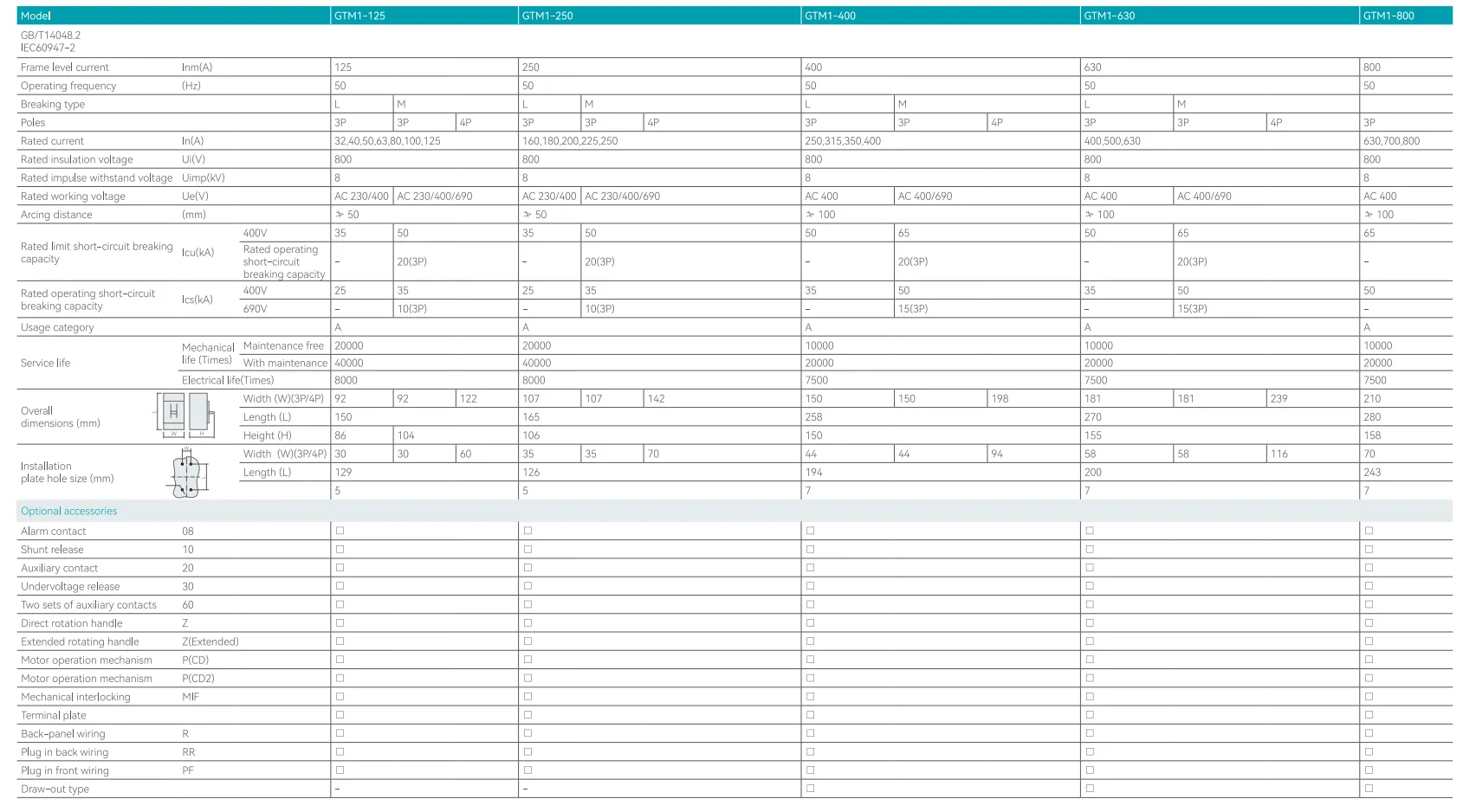

GTM1 Series Molded case circuit breaker (3)
