Overview
1.1 Product Features
The three-level medium-voltage high-power energy storage converter independently developed by our company integrates the converter, switchgear, and step-up transformer in an optimized design. It features high single-unit power capacity, flexible application, and easy installation and maintenance. The system can be directly connected to the grid at 10 kV / 35 kV, reducing complex high-voltage system design work, shortening the system design cycle, and lowering overall system costs.
1.2 Product Features
Intelligent and Efficient
Advanced three-level circuit topology with high conversion efficiency and superior power quality Wide DC voltage range up to 1500V
Advanced control algorithms with selectable constant current, constant voltage, and constant power operating modes
Supports continuous operation at 110% rated power and overload capability at 120% rated power Intelligent temperature-controlled air cooling for stable operation over a wide temperature range
High power density with smaller footprint at equivalent power rating
Safe and Reliable
Comprehensive battery protection and maintenance strategies to extend battery service life Protection against overcurrent, overtemperature, overload, overvoltage, short circuit, lightning, and grounding faults
Strong grid adaptability with high and low voltage ride-through capability
Arc fault protection to ensure safe power system operation
Suitable for harsh environments including low temperature, high humidity, and high altitude Converter protection rating IP55 for convenient outdoor installation
Efficient Layout
Integrated design of converter, switchgear, and transformer for simplified application
Comprehensive power ratings for flexible system configuration
Local touchscreen monitoring with real-time display and user-friendly operation
Standard Ethernet, RS485, and CAN communication interfaces
Main Technical Specifications

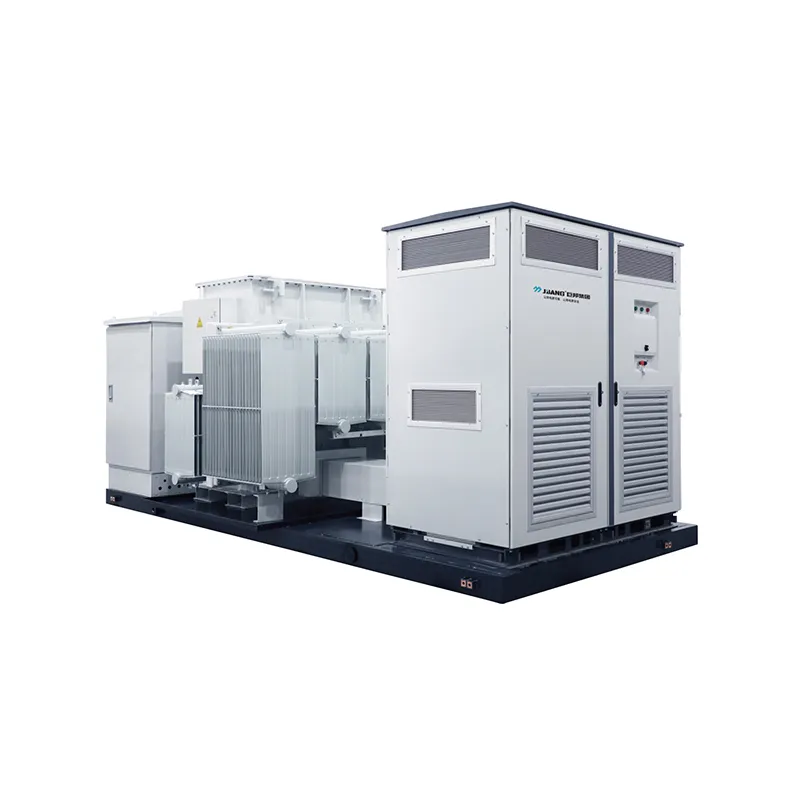

GTE-ZGS□ Energy Storage Power Conversion and Step-Up Integrated Unit(American Type) – Main Technical Specifications
| DC Parameters |
| Maximum DC Input Power |
2200kW |
2750kW |
3465kW |
3795kW |
| DC Input Voltage Range |
580-1000V |
730-1200V |
910-1500V |
1000-1500V |
| Maximum DC Input Current |
1935A*2 |
1935A*2 |
1935A*2 |
1935A*2 |
| Voltage Regulation Accuracy |
±1% |
±1% |
±1% |
±1% |
| Current Regulation Accuracy |
±1% |
±1% |
±1% |
±1% |
| DC Current Ripple |
≤2% |
≤2% |
≤2% |
≤2% |
| Converter Topology |
Three-Level |
Three-Level |
Three-Level |
Three-Level |
| Number of DC Input Circuits |
2 |
2 |
2 |
2 |
| AC Parameters(Grid-Connected Mode) |
| Rated AC Output Power |
2000kW |
2500kW |
3125kW |
3450kW |
| Rated AC Output Current |
2886A |
2886A |
2886A |
2886A |
| Rated AC Output Voltage |
400V |
500V |
630V |
690V |
| AC Output Voltage Range |
340-400V(adjustable) |
425-550V(adjustable) |
536-639V(adjustable) |
586-759V(adjustable) |
| Rated Grid Frequency |
50Hz |
50Hz |
50Hz |
50Hz |
| Permissible Grid Frequency Variation Range |
47-50Hz(adjustable) |
47-50Hz(adjustable) |
47-50Hz(adjustable) |
47-50Hz(adjustable) |
| Current Harmonic Distortion(THDi) |
<3%(at rated power) |
| Power Factor |
≤0.99 |
| Adjustable Power Factor Range |
0.9(leading)~0.9(lagging) |
| AC Parameters(Off-Grid Mode) |
| Rated Voltage |
400V |
500V |
630V |
690V |
| Voltage Accuracy |
Within ±3% |
Within ±3% |
Within ±3% |
Within ±3% |
| Rated Output Power |
50Hz |
50Hz |
50Hz |
50Hz |
| Output Voltage Harmonic Distortion(THD) |
<3%(linear load) |
<3%(linear load) |
<3%(linear load) |
<3%(linear load) |
| Frequency Accuracy |
±1Hz |
±1Hz |
±1Hz |
±1Hz |
| Transient Voltage Deviation Range |
|
