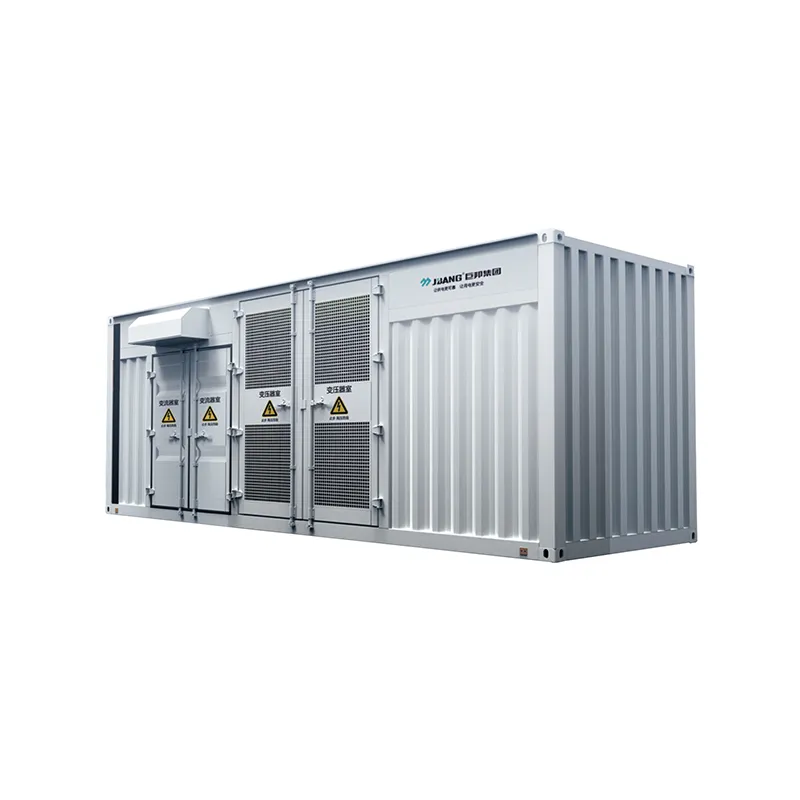

GTE-YB□ Energy Storage Power Conversion & Step-Up Integrated Cabin (European Type)

Intelligent and Efficient
Simple and Convenient
Safe and Reliable
Efficient Layout

Get A Quote

Product Features

Enables fully integrated product delivery

Improves space utilization

Supports multi-unit parallel operation, PQ and VF functions

Main Technical Specifications

GTE-YB□ Energy Storage Power Conversion and Step-Up Integrated Cabin(European Type) – Main Technical Specifications

Model
Rated Grid Voltage	10kV/35kV
Rated Grid Frequency	50/60Hz
Rated Output Power	2.0/2.5MW
Maximum Output Current	127A@10kV/36.3A@35kV 160A@10kV/45.7A@35kV
Overload Capacity	1.1×rated current(continuous)
Battery Capacity	Configured according to actual requirements
Topology(Three-Level Topology)	Three-Level Topology
Maximum Output Power	2.2/2.772MVA
Maximum DC Current	9264/11664A
DC Side Voltage	600-900VDC
Power Factor Range	-1~1
Current Harmonics(THDi)	<3%(at rated output power)
Voltage Regulation Accuracy	2%
Maximum Efficiency	99%
DC Inrush Current	Supported
Parallel Units	Supported
Communication Interface	Rs232/485, Ethernet, GPRS(optional)
Altitude	Derating required above 2000 m
Degree of Protection	IP54
Operating Temperature	-30~65℃
Cooling Method	Intelligent Air Cooling
Installation Method	Outdoor installation
Overall Dimensions(W×H×D)	6058×2896×2438
